Brilliant for bulk Delivery

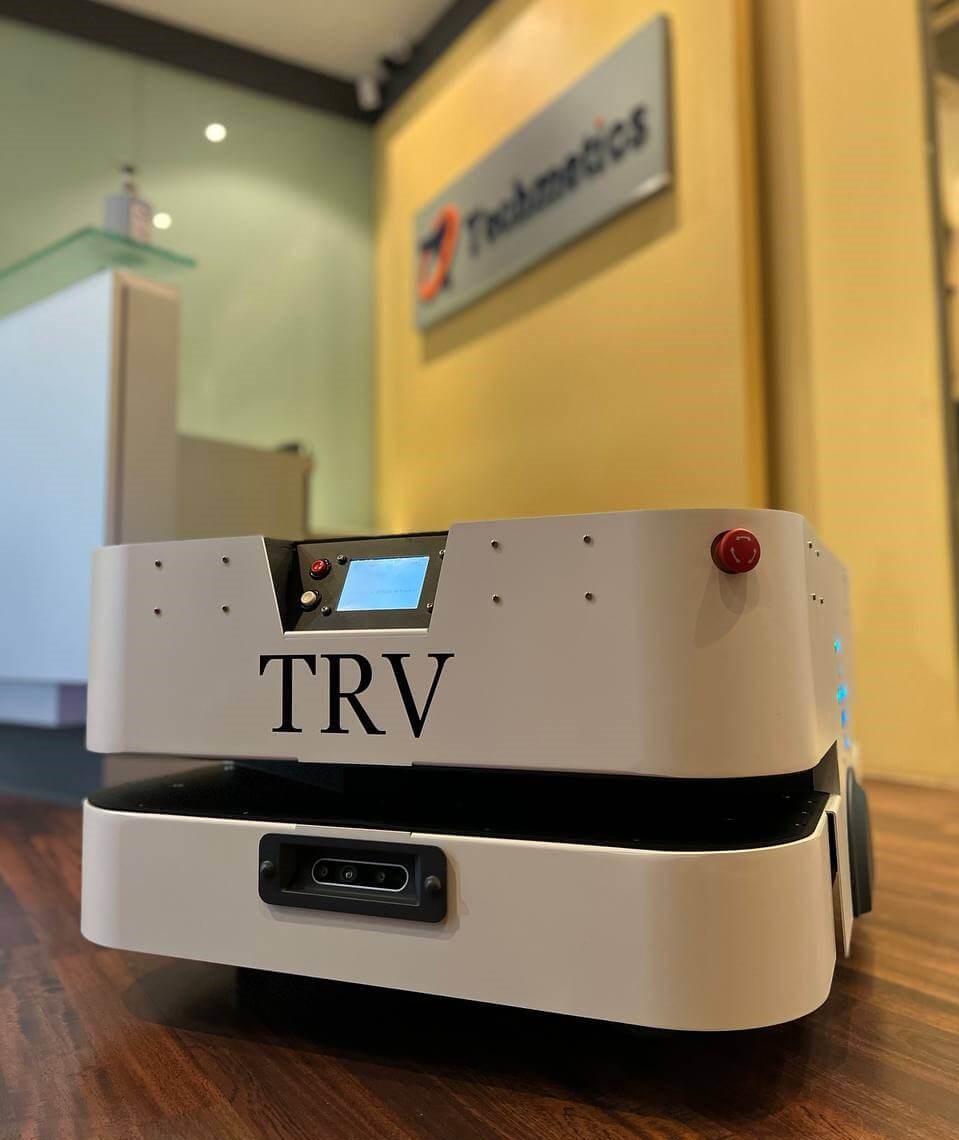

TRV Lifter

TRV Lifter

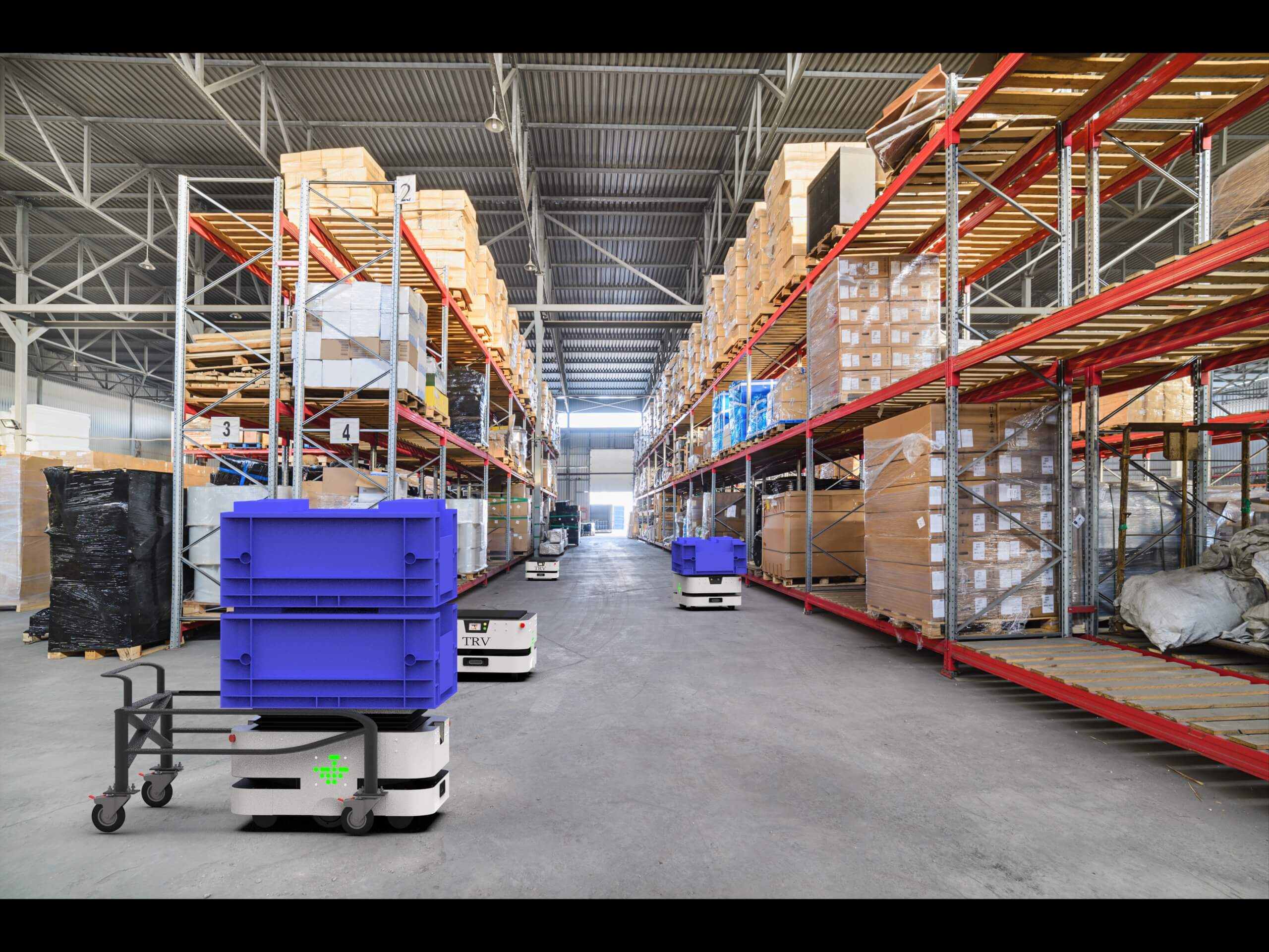

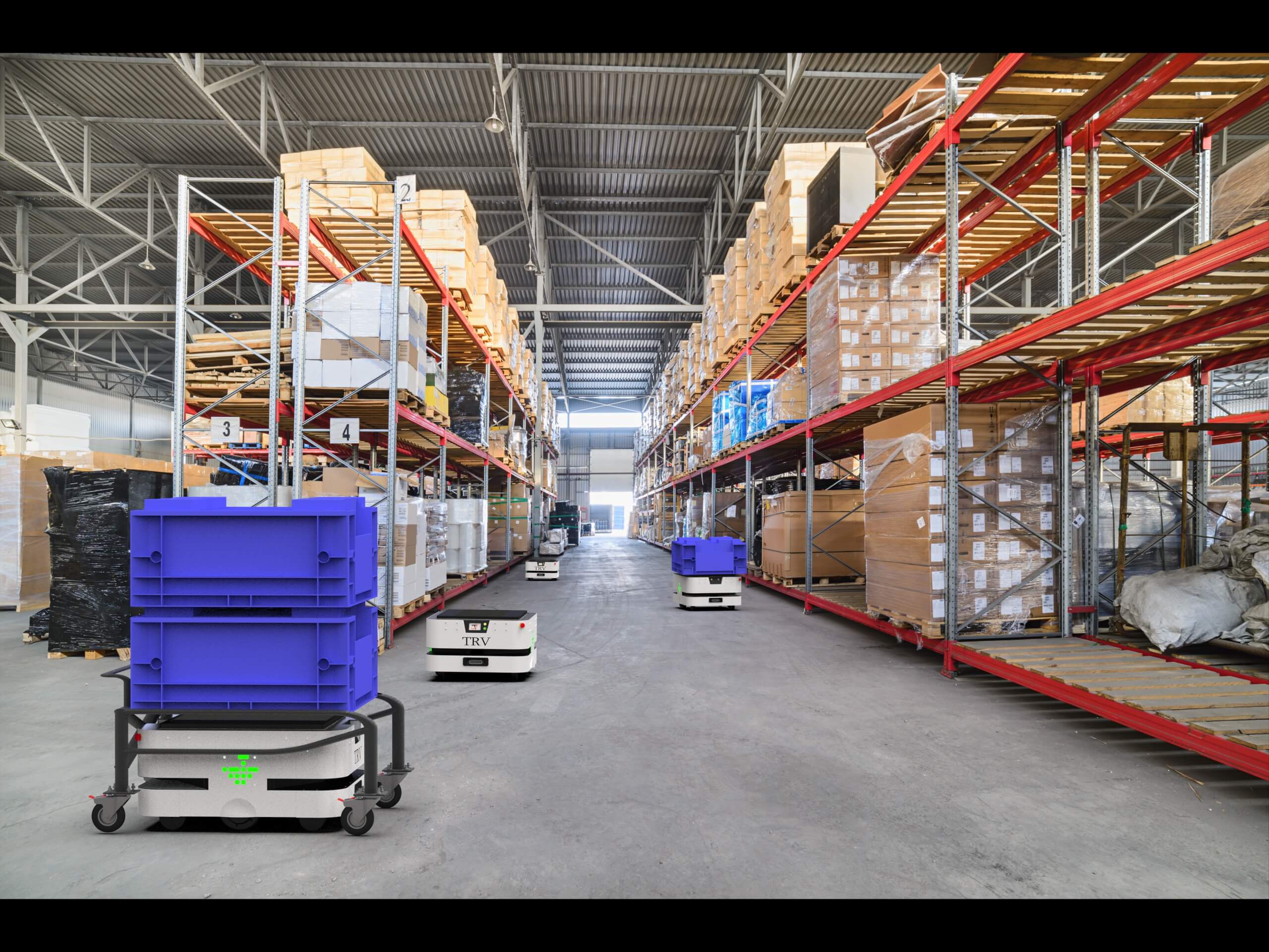

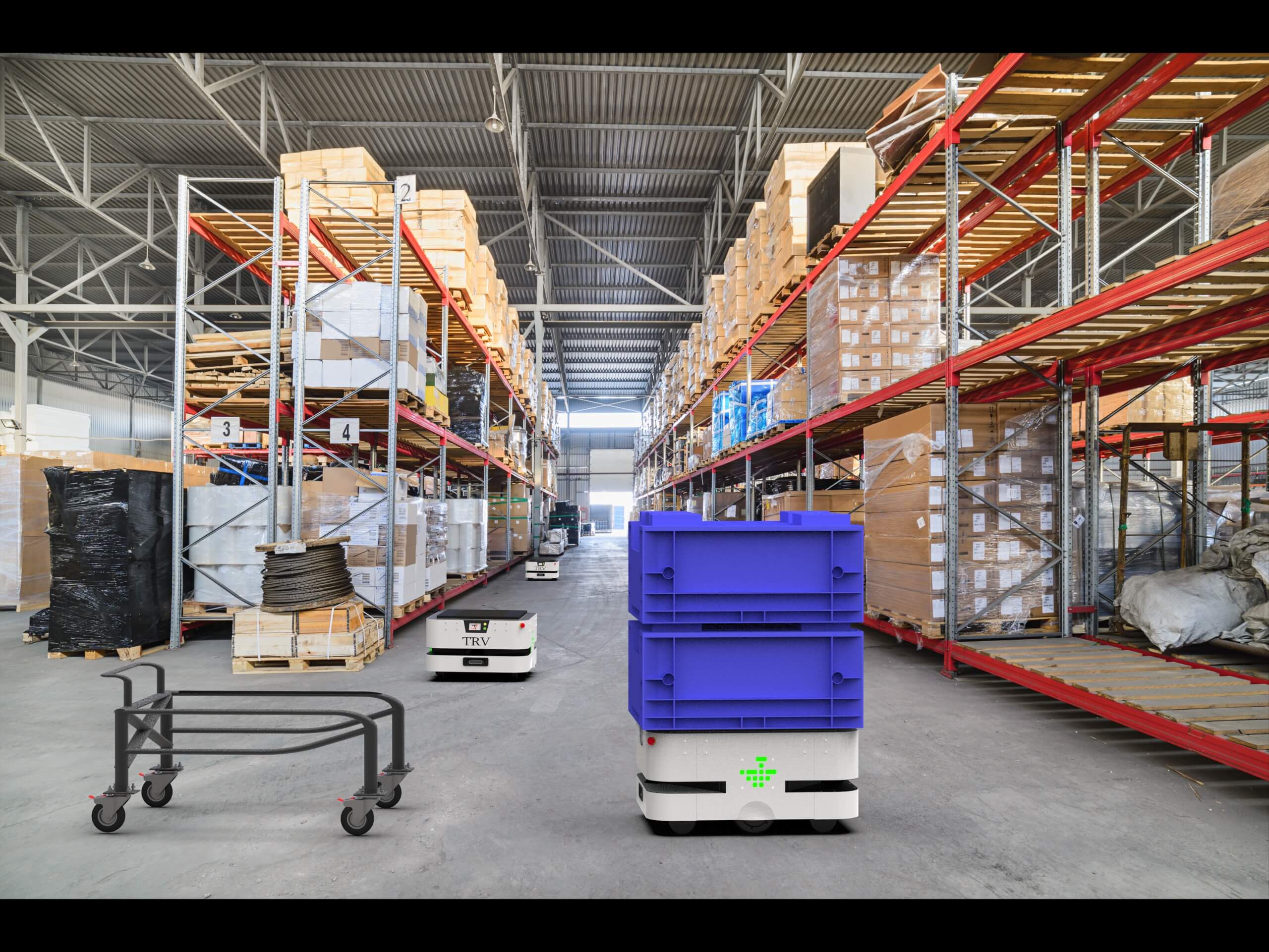

TRV Lifter is brilliant for bulk delivery. Automatically pickup/drop-off payload, eliminates manpower in both pick-up and delivery locations.

The robot does all the runners’ jobs so that your staff has free time to focus on their primary tasks.

Get Quote

Specifications

  • Material: Aluminum alloy chassis with AL casing
  • Dimension: 32” (L) x 27” (W) x16” (H)
  • Payload: 350 lbs. (160 kg)
  • Payload attachment: Automatic cart lifting mechanism included
  • Maximum Speed: 1.0 m/s
  • Navigation: Autonomous routing by LIDAR SLAM technology
  • Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety
    per ISO 13849-1
  • Drive wheels: Differential Drives (BLDC low noise motors), 2
    wheels
  • Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours
    continuous operation
  • Docking Station: 100 to 240 VAC, 50 to 60 Hz

Applications

  • Suitable for any indoor bulk material transportation applications in logistics, automotive and manufacturing industries
  • Suitable for automatic cart pickup/dropoff applications
  • Multi Story building delivery applications
  • Configurable for system integrator applications
Schedule a Meeting

Why TRV Lifter:



    • Safety Certified key components used (i.e CE/UL Certified LIDARS, Motor Controllers).
    • Premium, reputable key components used (i.e Safety LIDARS are from SICK UK or Equivalent).
    • Drives come with 20 Nm Powerful Passive Brakes for enhanced safety.
    • 10 Years of AMR Product Development Experience incorporated into Mobile Navigation.
    • Our Premium Series houses a “Parallel Safety Monitoring and Controlling Unit” in addition to our standard series’ features, suitable for customers who prefer Enhanced Safety Features.
