Excellent for bulk delivery

TRV Max

TRV Max

With 450 lbs. capacity, TRV Max is excellent for bulk delivery. The robot does all the runners’ jobs so that your staff has free time to focus on their primary tasks.

Get Quote

Specifications

  • Material: Aluminum alloy chassis with AL casing
  • Dimension: 32” (L) x 27” (W) x 15”(H)
  • Payload: 450 lbs. (200 kgs)
  • Payload attachment: Automatic cart lifting or latching mechanism (optional)
  • Maximum Speed: 1.0 m/s
  • Navigation: Autonomous routing by LIDAR SLAM technology
  • Safety Scanning LIDAR: Class 1 Safety Rated Laser, PLd safety per ISO 13849-1
  • Drive wheels: Differential Drives (BLDC low noise
    motors), 2 wheels
  • Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation
  • Docking Station: 100 to 240 VAC, 50 to 60 Hz

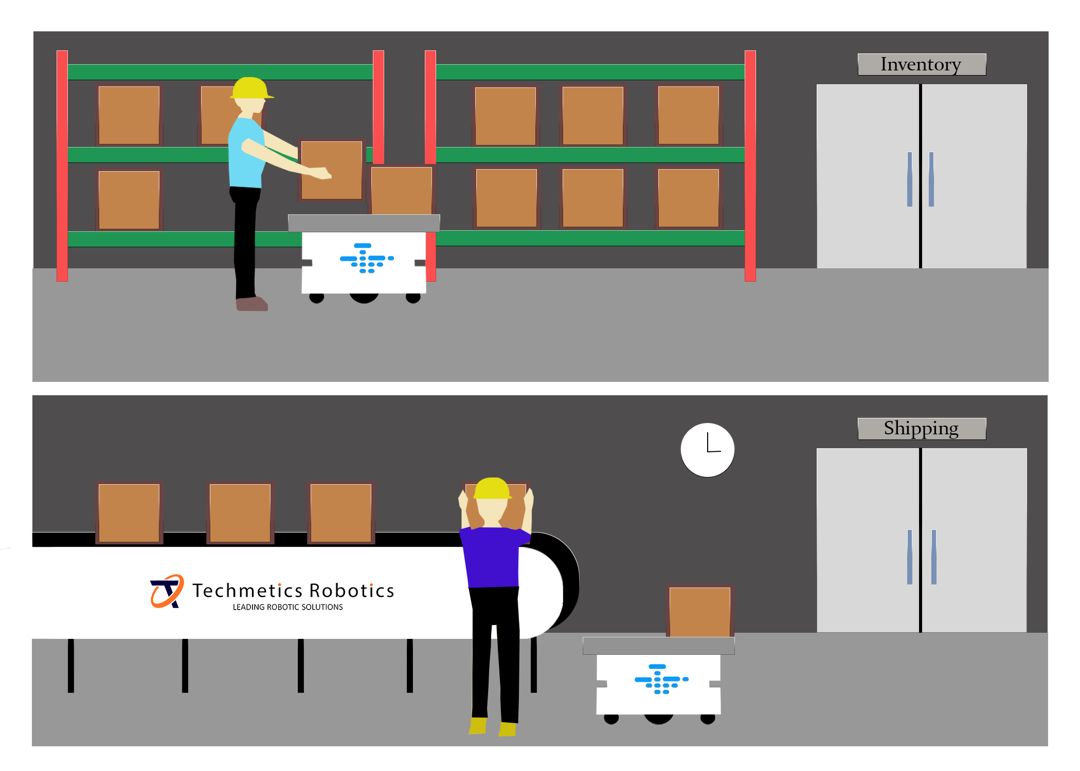

Applications

  • Suitable for any indoor bulk material transportation applications in logistics, automotive and manufacturing industries
  • Multi Story building delivery applications
  • Configurable for system integrator applications
Schedule a Meeting

 Why TRV Max:

  • Safety Certified key components used (i.e CE/UL Certified LIDARS, Motor Controllers).
  • Premium, reputable key components used (i.e Safety LIDARS are from SICK UK or Equivalent).
  • Drives come with 20 Nm Powerful Passive Brakes for enhanced safety.
  • 10 Years of AMR Product Development Experience incorporated into Mobile Navigation.
  • Our Premium Series houses a “Parallel Safety Monitoring and Controlling Unit” in addition to our standard series’ features, suitable for customers who prefer Enhanced Safety Features.
